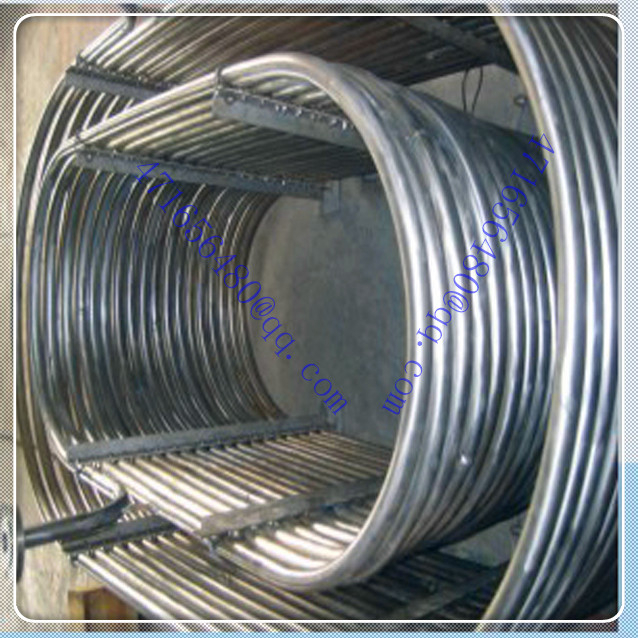

high precise titanium u shape pipe for Ti heat exchanger supplier

Titanium Tubes / Titanium Pipes



Production is according to ASTM B337 (seamless and welded titanium and titanium alloy pipes), ASTM B338 (titanium and titanium alloy tubes for condensers and heat exchangers) or ASTM B861 (seamless titanium and titanium alloy pipes). Other standards available upon request.

We also provide pipes and tubes made of molybdenum, niobium and nickel.

Thin-Walled Titanium Tubes

● Thin-walled titanium tubes: Wall thickness ranging from 0.7-1 mm

● Medical capillary titanium tubes: Diameters of ≥ 0.2 mm

● Capillary tube: OD: 0.8—4.0 mm, WT: 0.05---1.0 mm,           L: 10.0—13000.0 mm

Special Shaped Titanium Tubes

We can provide square, hexagonal, elliptic and other special-shaped titanium tubes according to customers’ specifications.

We also provide DN80-DN1200 welded pipes of titanium, nickel and other alloys, Hastelloy alloys as well as other special metals.



Titanium Pipe Specifications.

Material	Manufacturing  Process	Processing  State	Diameter  [mm]	Standards
TA0，TA1, TA2, TA9 TA10  Gr1, Gr2, Gr7, Gr11, Gr12, Gr17,  nickel, niobium, molybdenum	Cold rolled	Cold rolled, annealed	Φ3-114	GB/T3624-2005 GB/T3625-2005  ASTM B337 ASTM B338  ASTM B861
TA0，TA1, TA2, TA9 TA10  Gr1, Gr2, Gr7, Gr11, Gr12, Gr17,  nickel, niobium, molybdenum	Welded	annealed	Φ10-40	GB/T3624-95 GB/T3625-95
