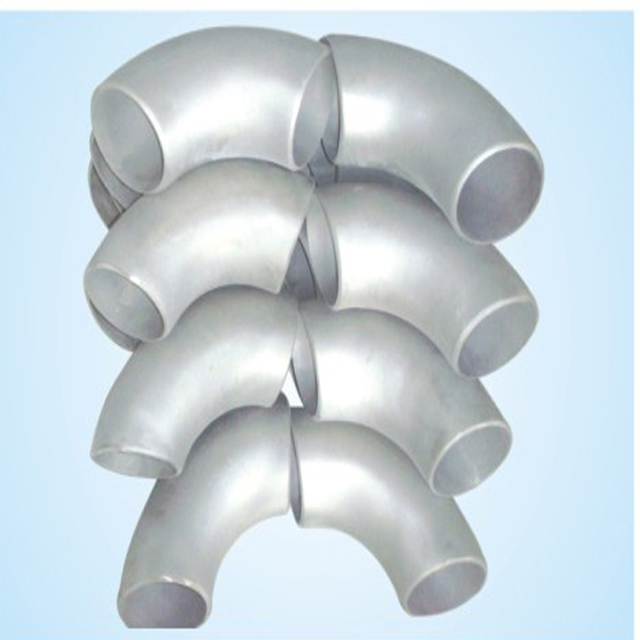

Hot sale ASTM B363 gr2 pure titanium elbows for titanium tube fitting

Share to:

Hot sale ASTM B363 gr2 pure titanium elbows for titanium tube fitting

We provide high precise machining titanium or nickel pipes, balls, elbows, reducers (small/big head), T-fittings, flange, valve, as well as other branch connections, casing caps, tube sockets,ti valve, ti elbow, ti fitting, ti flange, integral pipe flange, steel pipe flange, threaded flange, slip-on flange (SO); slip-on welding flange, socket welding flange, lap joint flange (LJF) , welding neck flange (WNF), blind flange, orifice flange, reducing flange, pad type flange, loose hubbed flange, welding plate flange, welding neck collar, welding-on collar, stub end, lap, lapped pipe end,loose plate flange,titanium or nickel ball, reducer,branch connections, casing cap, tube socket, Ti pump, equal tee from China.

Quantity:


Inquire Add to Basket

Model:
ee-920
Brand:
elegant

Product Description

We provide titanium or nickel pipes, elbows, reducers (small/big head), T-fittings, flange, valve, as well as other branch connections, casing caps, tube sockets from China.

· Elbows of 30°, 45 °, 60° , 90 °, 180 ° and any arbitrary bending from titanium, nickel and other alloys, Hastelloy alloys as well as other special metals.

· DN80-DN1200 welded pipes of titanium, nickel and other alloys, Hastelloy alloys as well as other special metals.

· We implement and refer to technical standards such as GB12459-2000, GB13401-1990, HG3651-1999, and ASTM B363.

Titanium Fittings

DN	Outer diameter D (end)		Dimensions (center to end)			Dimensions (center to center)		Dimensions (back to end)
	Outer diameter D (end)		45° Elbow H	90° Elbow F		180° Elbow P		180° Elbow K
	A series	B series	Long radius	Long radius	Short radius	Long radius	Short radius	Long radius	Short radius
15	21.3	18	16	38	--	76	--	48	--
20	26.9	25	16	38	--	76	--	51	--
25	33.7	32	16	38	25	76	51	56	41
32	42.4	38	20	48	32	95	64	70	52
40	48.3	45	24	57	38	114	76	83	62
50	60.3	57	32	76	51	152	102	106	81
65	76	76	40	95	64	191	127	132	100
80	89	89	47	114	76	229	152	159	121
90	102	--	55	133	89	267	178	184	140
100	114	108	63	152	102	305	203	210	159
125	140	133	79	190	127	381	254	262	197
150	168	159	95	229	152	457	305	313	237
200	219	219	126	305	203	610	406	414	313
250	273	273	158	381	254	762	508	518	391
300	324	325	189	457	305	914	610	619	467
350	356	377	221	533	356	1067	711	711	533
400	406	426	253	610	405	1219	813	813	610
450	457.0	480	284	686	457	1372	914	914	686
500	508	530	316	762	508	1524	1016	1016	762
550	560	-	347	838	560	-	-	-	-
600	610	630	380	914	610	-	-	-	-
650	660	-	410	990	660	-	-	-	-
700	711	720	442	1067	711	-	-	-	-
750	762	-	473	1143	762	-	-	-	-
800	813	820	505	1219	813	-	-	-	-
850	864	-	537	1295	864	-	-	-	-
900	914	920	568	1372	914	-	-	-	-
950	965	-	600	1448	965	-	-	-	-
1000	1016	1020	631	1524	1016	-	-	-	-
1050	1067	-	663	1600	1067	-	-	-	-
1100	1120	1120	694	1676	1120	-	-	-	-
1150	1168	-	726	1753	1168	-	-	-	-
1200	1220	1220	758	1829	1220	-	-	-	-

Titanium Flange
Material Grade	Gr1, Gr1, Gr2,Gr7, Gr9, Gr23, TI-6Al4v,
Certification	ISO9001:2008 BV
Standard	ANSI B16.5,JIS B2220, DIN2627-2628,ASME, GB/T 9116, ASTM B16.5
size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class	PN0.25~32Mpa
	(DIN) PN6,PN10,PN16,PN25 though PN250
	150LB, 250LB ,300LB, 400 LB,500LB, 600 LB, 900LB, 1500LB,2500LB
Technique	Forged and CNC Machined
type	WNRF , SORF , BLIND ,SW, PL
Flange surface	FF,RF,TG,RJ etc
Application products	used in cars, glasses,medical equipment , electronics , petrochemical equipment
Advantage	1. Long service life
	2. corrosion -resistant
	3.high yeiled strength and tensile strength.
